대한민국 NO.1 전력기기 부품 기업
| Rated Voltage | 15 kV |
|---|---|
| Rated Current | 40 ~ 200 A |
| Type | Lead Wire or Stud or Pipe |
| BIL | 95 kV |
| Flange Type | 3 types |
| Fitting Type | Clamp or Busbar |

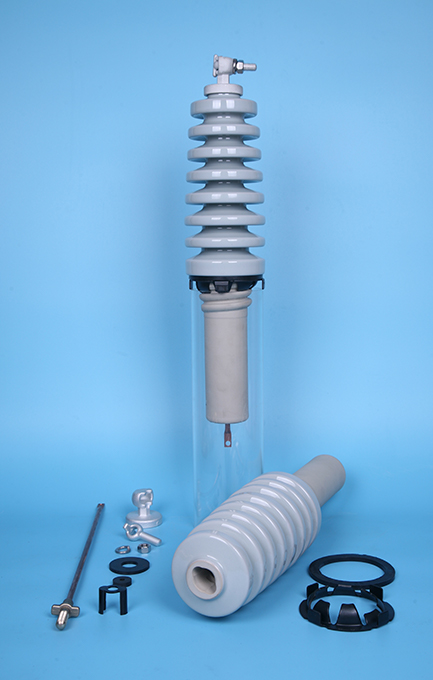

| Rated Voltage | 18 kV |
|---|---|
| Rated Current | 40 ~ 200 A |
| Type | Lead Wire or Stud or Pipe |
| BIL | 125 kV |
| Flange Type | 3 types |
| Fitting Type | Clamp or Busbar |
| Rated Voltage | 18 kV |
|---|---|
| Rated Current | 40 ~ 200 A |
| Type | Lead Wire or Stud or Pipe |
| BIL | 125 kV |
| Flange Type | 3 types |
| Fitting Type | Clamp or Busbar |

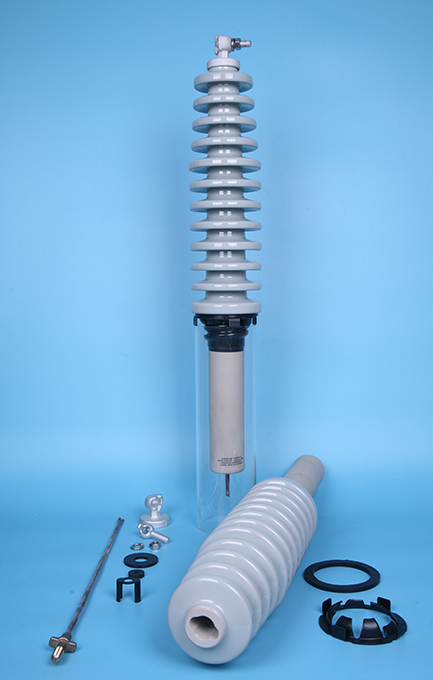

| Rated Voltage | 34 kV |
|---|---|
| Rated Current | 40 ~ 200 A |
| Type | Lead Wire or Stud or Pipe |
| BIL | 150 kV |
| Flange Type | 3 types |
| Fitting Type | Clamp or Busbar |
| 코드 | 품명 | 규격 |
|---|---|---|

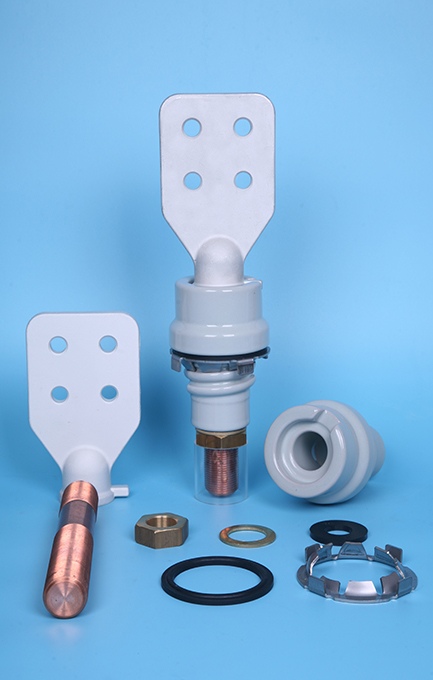

| NDBF9001 | Low Voltage Bushing 1.2KV 125A | GAMMA_PASAT BT 1.3 KV KOREA |
| 코드 | 품명 | 규격 |
|---|---|---|
| NDBF9002 | Low Voltage Bushing 1.2KV 125A | GAMMA_PASAT BT 1.3 KV KOREA |
| 코드 | 품명 | 규격 |
|---|---|---|
| NDBF9003 | Low Voltage Bushing 1.2KV 200A | GAMMA_PASAT BT 1.3 KV KOREA |
| 코드 | 품명 | 규격 |
|---|---|---|
| NDBF9004 | Low Voltage Bushing 1.2KV 600A | GAMMA_PASAT BT 1.2KV GRIS KOREA |
| 코드 | 품명 | 규격 |
|---|---|---|
| NDBF9005 | Low Voltage Bushing 1.2KV 800A | GAMMA_PASAT BT 1.2KV GRIS KOREA |
| 코드 | 품명 | 규격 |
|---|---|---|
| NDBF9006 | Low Voltage Bushing 1.2KV 800A | GAMMA_PASAT BT 1.2KV GRIS KOREA |
