PRODUCT

Power transformer Bushing

Korea's No. 1 Power Equipment Parts Company

ANSI Standard Bushing

  • Primary Bushing
  • Secondary Bushing
Low Votage Bushing 7.2KV 2R

Primary
Bushing 2R (Low Current)

Rated Voltage 7.2kV
Rated Current 200 ~ 800A
Type Stud
BIL 60kV
Fitting Type Busbar
Low Votage Bushing 7.2KV 2R
Blueprint

Features of Namdo Products

The uniqueness of Namdo Electric Industry
the art of thirty years' know-how

View
High Votage Bushing 7.2KV 2R

Primary
Bushing 2R (High Current)

Rated Voltage 7.2kV
Rated Current 1200 ~ 3000A
Type Stud (Thread or Milling)
BIL 60kV
Fitting Type Busbar
High Votage Bushing 7.2KV 2R
Blueprint

Features of Namdo Products

The uniqueness of Namdo Electric Industry
the art of thirty years' know-how

View
Low Voltage Bushing 15KV 3R

Primary
Bushing 3R (Low Current)

Rated Voltage 15kV
Rated Current 200 ~ 800A
Type Stud
BIL 1100kV
Fitting Type Busbar
Low Voltage Bushing 15KV 3R
Blueprint

Features of Namdo Products

The uniqueness of Namdo Electric Industry
the art of thirty years' know-how

View
High Voltage Bushing 15KV 3R

Primary
Bushing 3R (High Current)

Rated Voltage 15kV
Rated Current 1200 ~ 3000A
Type Stud (Thread or Milling)
BIL 110kV
Fitting Type Busbar
High Voltage Bushing 15KV 3R
Blueprint

Features of Namdo Products

The uniqueness of Namdo Electric Industry
the art of thirty years' know-how

View
Low Voltage Bushing 25.8KV 4R

Primary
Bushing 4R (Low Current)

Rated Voltage 25.8kV
Rated Current 200 ~ 800A
Type Stud
BIL 150kV
Fitting Type Busbar
Low Voltage Bushing 25.8KV 4R
Blueprint

Features of Namdo Products

The uniqueness of Namdo Electric Industry
the art of thirty years' know-how

View
High Voltage Bushing 25.8KV 4R

Primary
Bushing 4R (High Current)

Rated Voltage 25.8kV
Rated Current 1200 ~ 3000A
Type Stud (Thread or Milling)
BIL 150kV
Fitting Type Busbar
High Voltage Bushing 25.8KV 4R
Blueprint

Features of Namdo Products

The uniqueness of Namdo Electric Industry
the art of thirty years' know-how

View
Low Voltage Bushing 1.2KV 1R

Secondary
Bushing (High Crrent)

Rated Voltage 1.2kV
Rated Current 2000 ~ 7000A
Type Stud
BIL 60kV
Fitting Type Busbar
Low Voltage Bushing 1.2KV 1R
Blueprint

Features of Namdo Products

The uniqueness of Namdo Electric Industry
the art of thirty years' know-how

View

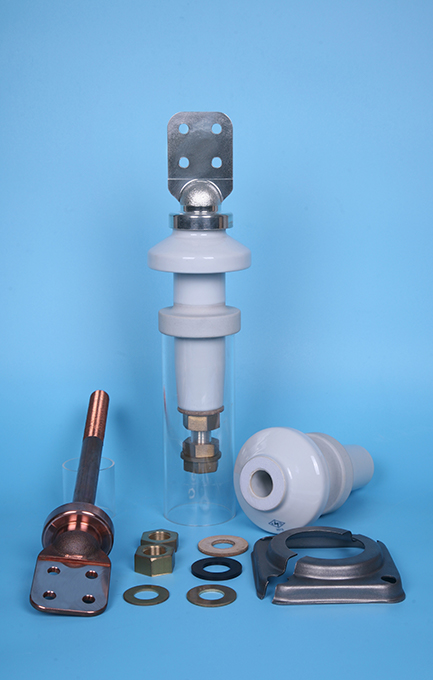

Low Voltage Busging 1.2KV 580A

Secondary
Bushing (Solid type)

Rated Voltage 1.2kV
Rated Current 580A
Type Stud
BIL 30kV
Fitting Type Busbar
Low Voltage Busging 1.2KV 580A
Blueprint

Features of Namdo Products

The uniqueness of Namdo Electric Industry
the art of thirty years' know-how

View

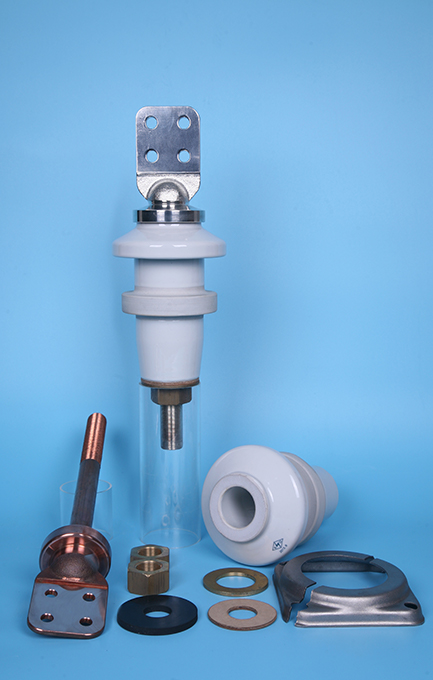

Low Voltage Bushing 1.2KV 2400A

Secondary
Bushing (Solid type)

Rated Voltage 1.2kV
Rated Current 2400A
Type Stud (Thread or Milling)
BIL 30kV
Fitting Type Busbar
Low Voltage Bushing 1.2KV 2400A
Blueprint

Features of Namdo Products

The uniqueness of Namdo Electric Industry
the art of thirty years' know-how

View

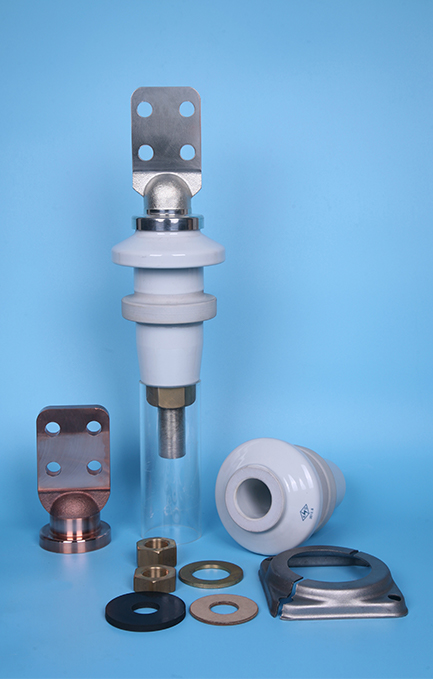

Low Voltage Bushing 1.2KV 3100A

Secondary
Bushing (Solid type)

Rated Voltage 1.2kV
Rated Current 3100A
Type Stud (Thread or Milling)
BIL 30kV
Fitting Type Busbar
Low Voltage Bushing 1.2KV 3100A
Blueprint

Features of Namdo Products

The uniqueness of Namdo Electric Industry
the art of thirty years' know-how

View

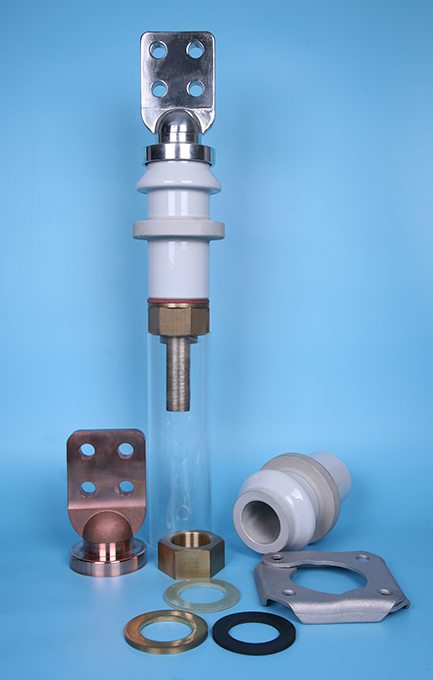

Low Voltage Busging 1.2KV 4000A

Secondary
Bushing (Solid type)

Rated Voltage 1.2kV
Rated Current 4000A
Type Stud (Thread or Milling)
BIL 30kV
Fitting Type Busbar
Low Voltage Busging 1.2KV 4000A

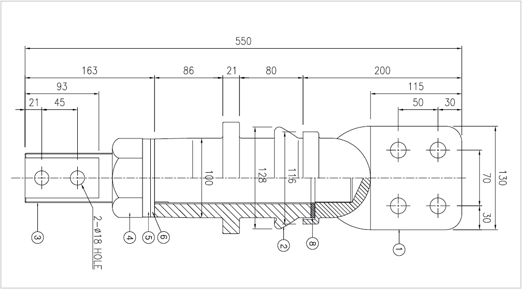

Blueprint

Features of Namdo Products

The uniqueness of Namdo Electric Industry
the art of thirty years' know-how

View
